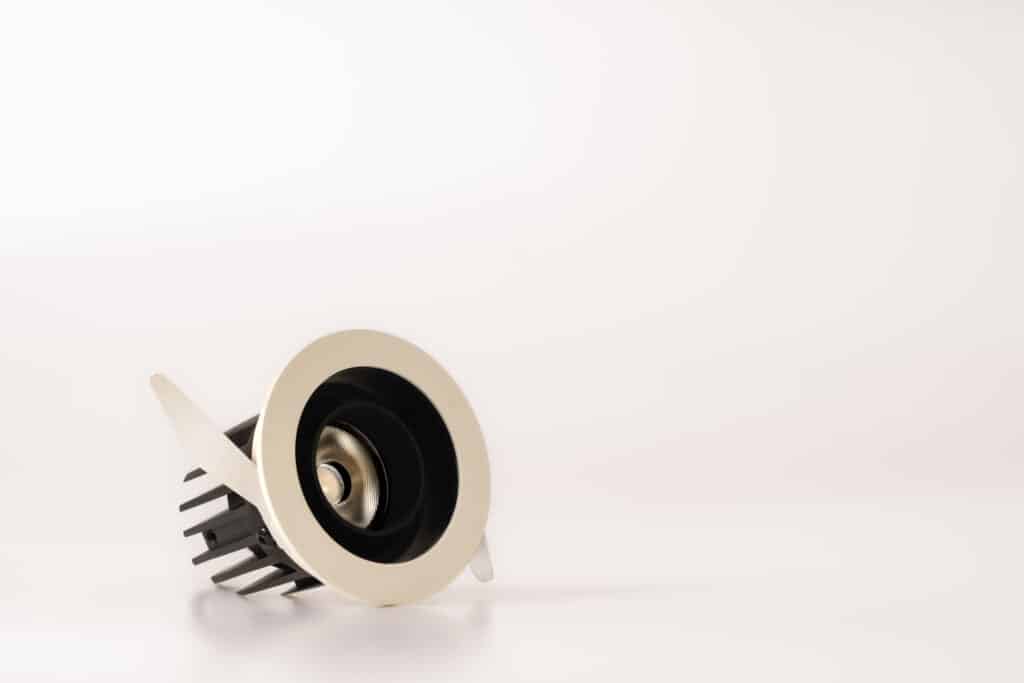

The Aim.70 is a beautifully engineered extra minimal downlight suitable for both dry and humid interiors. An intensely deep black baffle combined with an extra slim aluminium powder-coated bezel allows for a low glare and minimal architectural lighting.

The design gives 20° of tilt with 180° of pan, allowing for pinpoint accuracy of light. The Aim.70 has a superior designed heat sink, allowing for cool running while only requiring 58mm height clearance. The fitting can accommodate a 15° 24° 36° or 60° beam, with Correlated Colour Temperatures (CCT) of a warm 2700K or a cool 4000K.

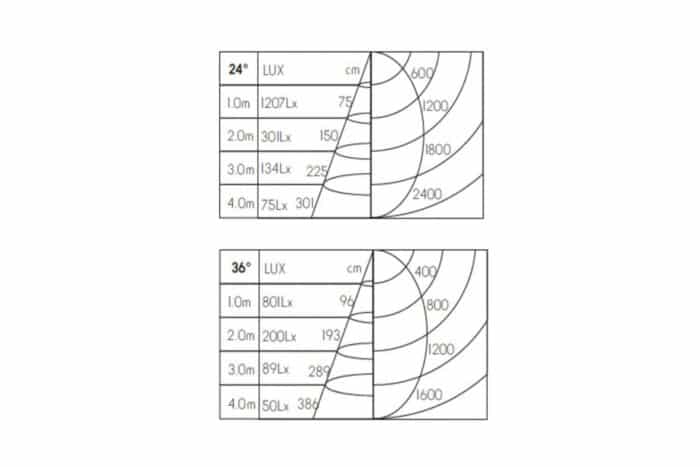

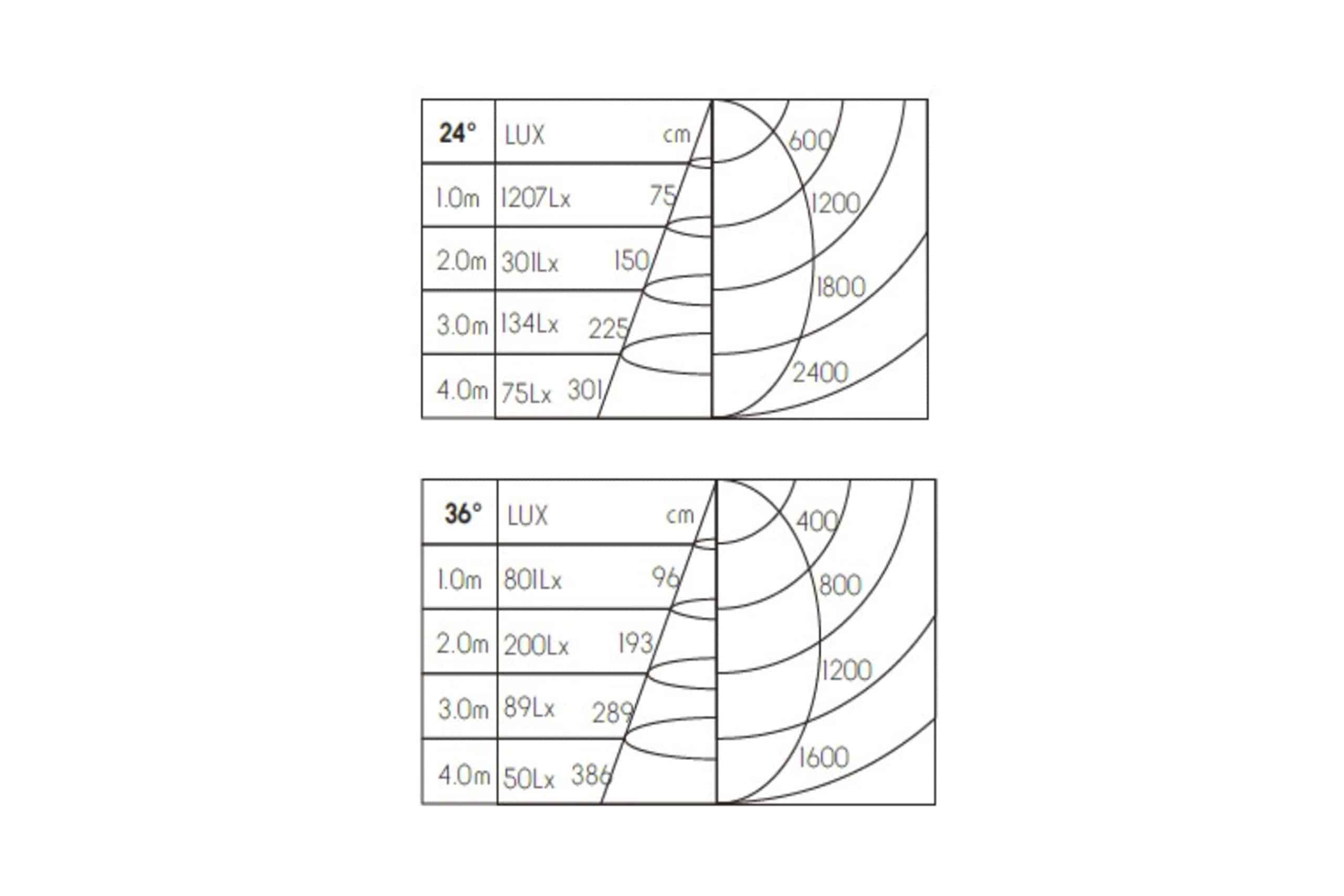

Photometric Data – 24°
Photometric Data – 36°

Product Data Sheet

SKU Aim70.4000K Categories ,




Aim.70 Product Specification

Material Aluminium
Lumen Output 780Lm
LED HonourTEK HRA0607 9W DC250mA 36v
Lifespan >50,000 hrs
CRI >95
Power Factor >0.50

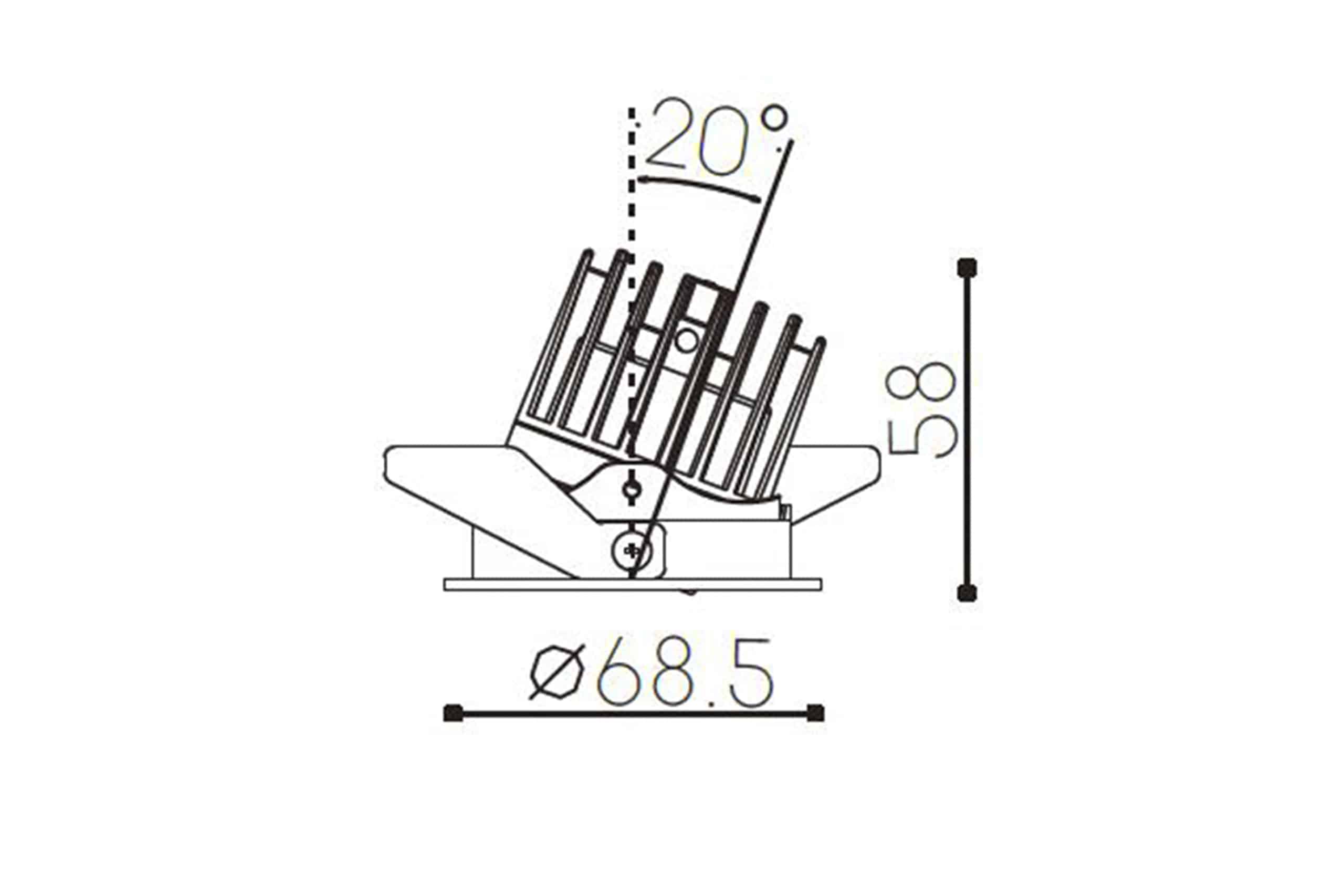

Size Ø68.5*58MM
Cutout Ø62mm
Fire & Acoustic Rated 60min
IP Rating 54
Working Temperature -20°C – +40°C
Binning 1 SDCM
Finish White Powder Coat or Black


Driver Calculator.

Use our driver calculator to assist with specifying what driver(s) you will require for your next project. Simply input the number of fittings you would like to use on a single circuit, and the calculator will recommend the best driver for you.
