All of our drivers have been specifically designed for ease of installation and their technical performance.

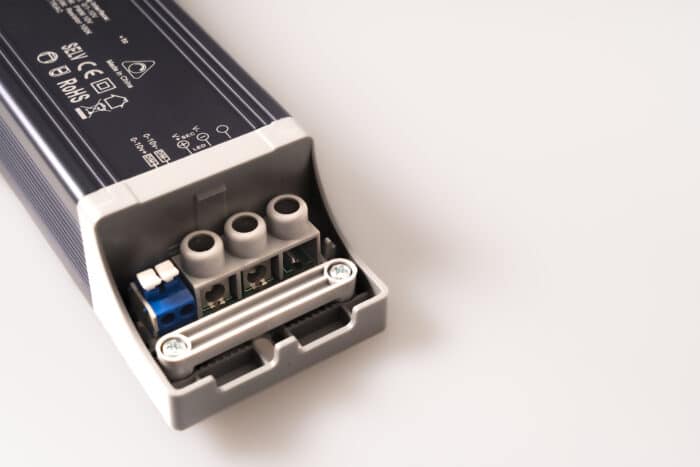

Electrical terminals are heavy duty in construction for assured connections. All terminal covers are screw-less for speed and performance resulting in a 30% increase in installation time compared to a third party’s.

16-step dimming curves ensure unrivalled smooth dimming ability.

Unrivalled build quality and technical performance.

Product Data Sheet

SKU PH36-24-CV Categories ,




PowerHub.36 Product Specification

Output Voltage 24Vdc Input Current <0.38A
Output Current 1.5A Efficiency 85%
Output Power 36W In-rush Current Cold Start 7.5A
Strobe Level No Flicker Anti-Surge L-N: 2kV
Dimming Range 0-100% Leakage Current <0.5mA/230Vac
PWM Dimming Frequency >3600K Working Temperature 45c – 85c
Dimming Interface Triac Leading Edge/0-10V/1-10V IP IP20
Input Voltage Range 200-250Vac Over-Current Protection Shut Down >102% (auto recovers)
Frequency 50/60Hz Short-Circuit Protection Shut Down Short Circuit (auto recovers)


Driver Calculator.

Use our driver calculator to assist with specifying what driver(s) you will require for your next project. Simply input the number of fittings you would like to use on a single circuit, and the calculator will recommend the best driver for you.
