Dot.06

£88.89

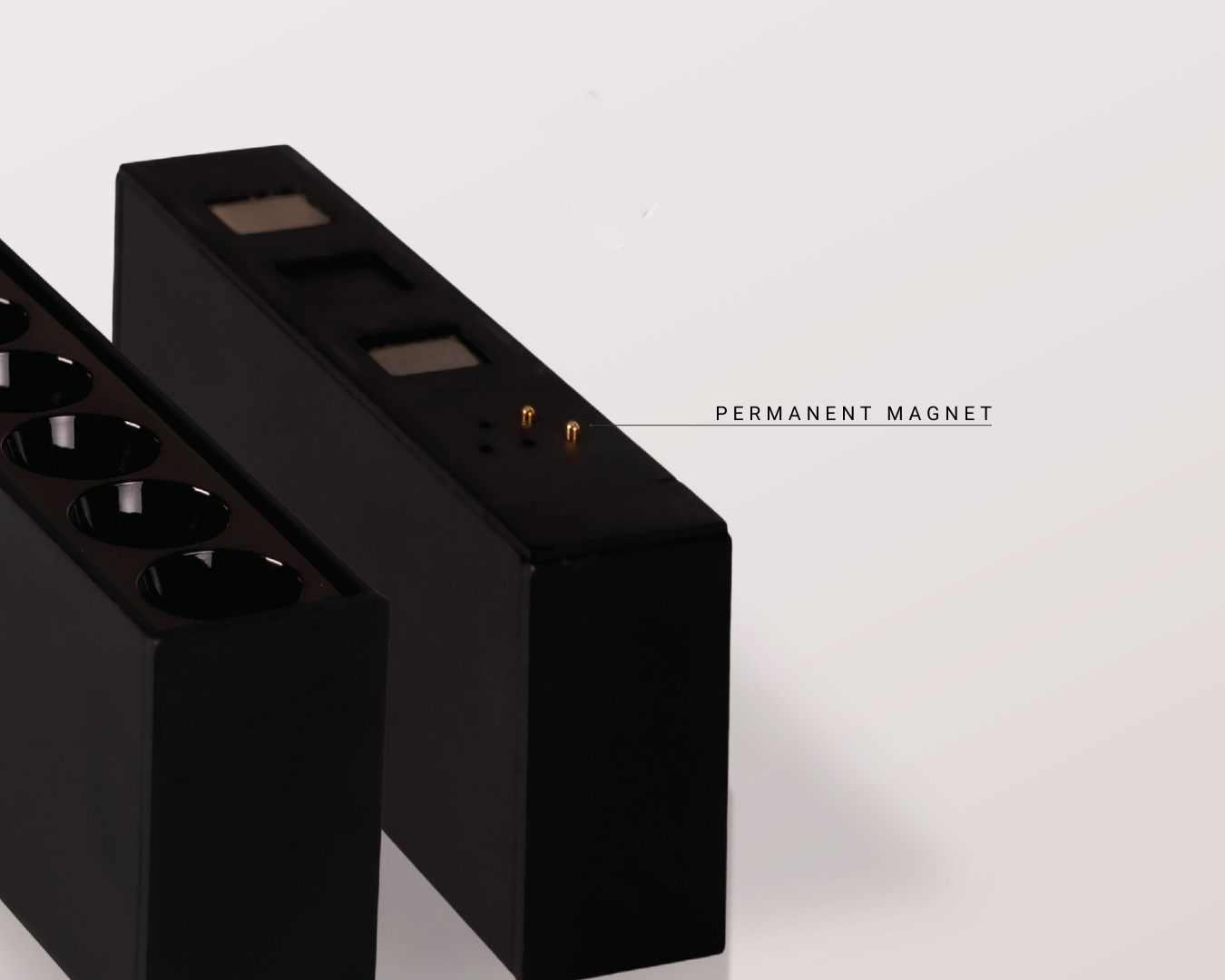

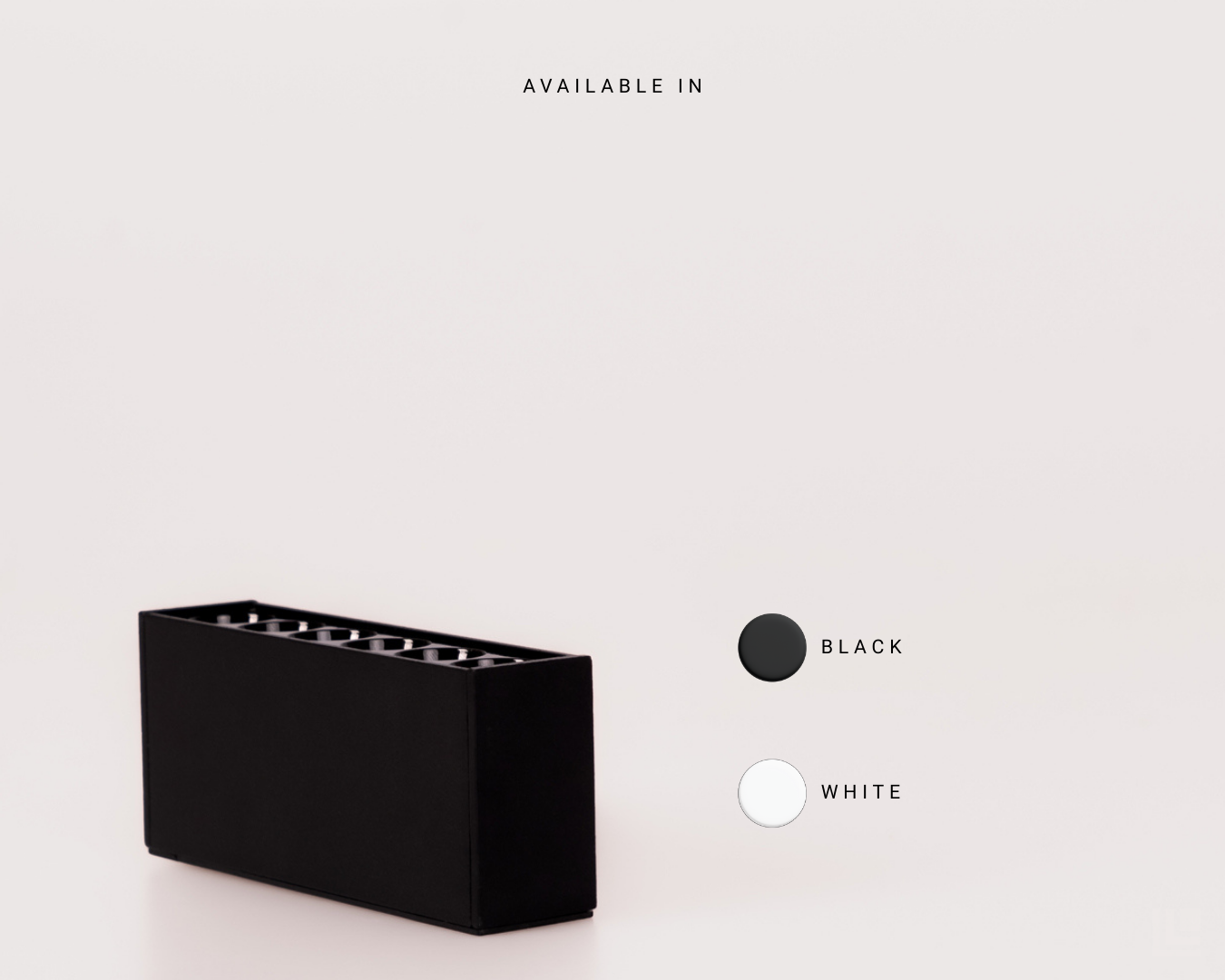

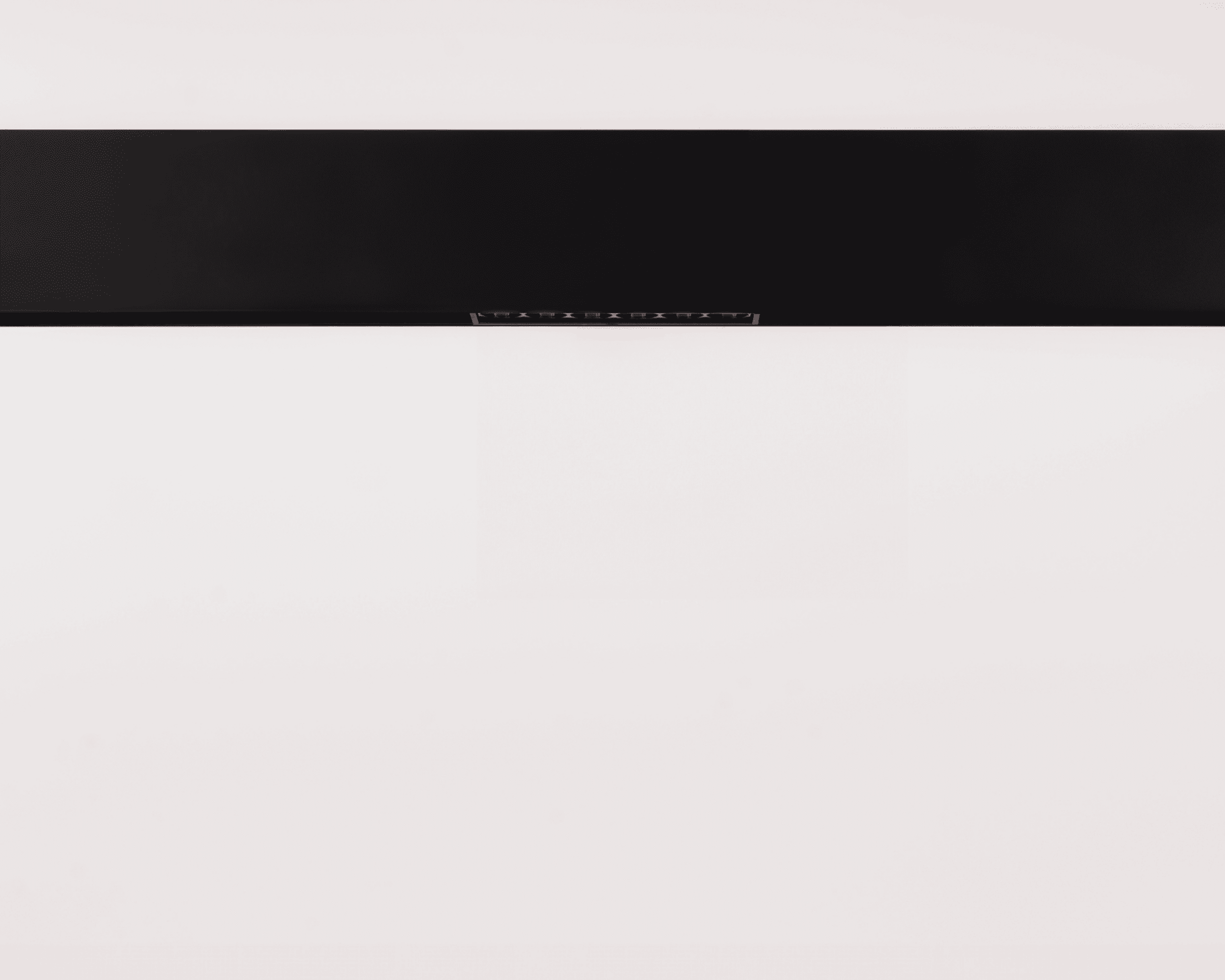

The Dot.06 magnetic LED module is magnetically connected to the Magtrak profile providing a superior appearance and installation. Dot.06 provides a beautiful beam to project onto and enhance any surface.

Our Magtrak collection is available in both TRIAC and DALI dimmable. Depending on your own preference, both allow a beautiful beam to be projected onto any surface. With 15 products in our range, including the Dot.06, each with a completely different illumination, our partners know that there is a product in our Magtrak range perfect for their next project.

Photometric Data- 20°     Photometric Data- 34°     Photometric Data- 48°

Product Data Sheet

SKU Dot.06.TRIAC Categories , ,

Warranty

Our 3-year warranty policy offers you and your client long-lasting satisfaction and peace of mind when choosing us for your lighting solutions.
Find out more

Dark Sky Policy

We're working towards the Dark Sky policy to ensure our exterior products are compliant with their guidelines to prevent light pollution and protect wildlife.
Find out more

Unrivalled Heat Sink

We’ve expertly engineered each product so not only does the heat sink increase the lifespan of the fitting, but it is also incorporated into the design of the product.

Revolution

We are taking steps to ensure our products have a more sustainable focus. We prefer to repair rather than replace and we hold stock in the UK to minimise carbon emissions.
Find out more

Exceptional CRI

Embrace colour accuracy with high CRI lighting, All of our light fittings have a CRI of at least 90, providing the most accurate and visually appealing light possible.

Lumen Output

It’s important to consider the desired brightness level for the intended application. Each product has a carefully considered lumen output to provide a suitable lighting finish.

Driver Calculator

Use our driver calculator to assist with specifying what driver(s) you will require for your next project. Simply input the number of fittings you would like to use on a single circuit, and the calculator will recommend the best driver for you.
Download

Dot.06 Product Specification

Material Aluminium
Lumen Output 650Lm
LED OSRAM 6W 24V DC
Lifespan >50,000 hrs
CRI >90
Colour Temperature 2700K

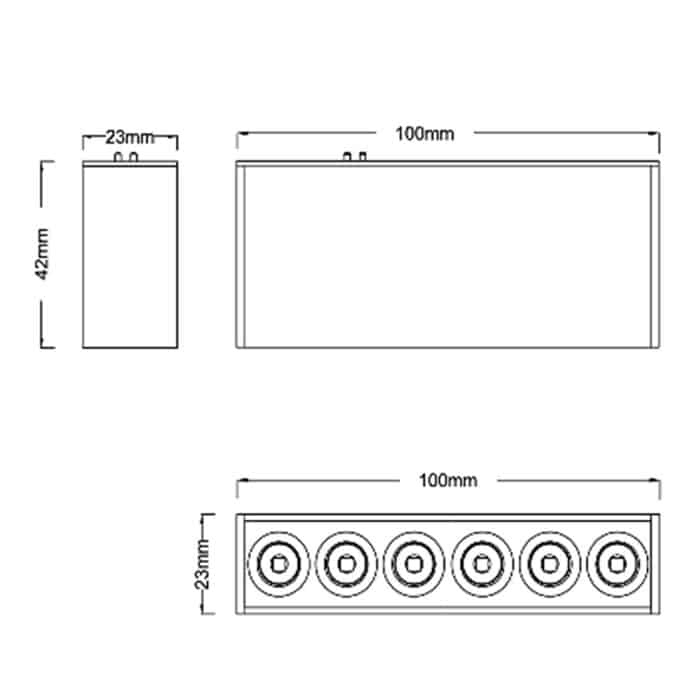

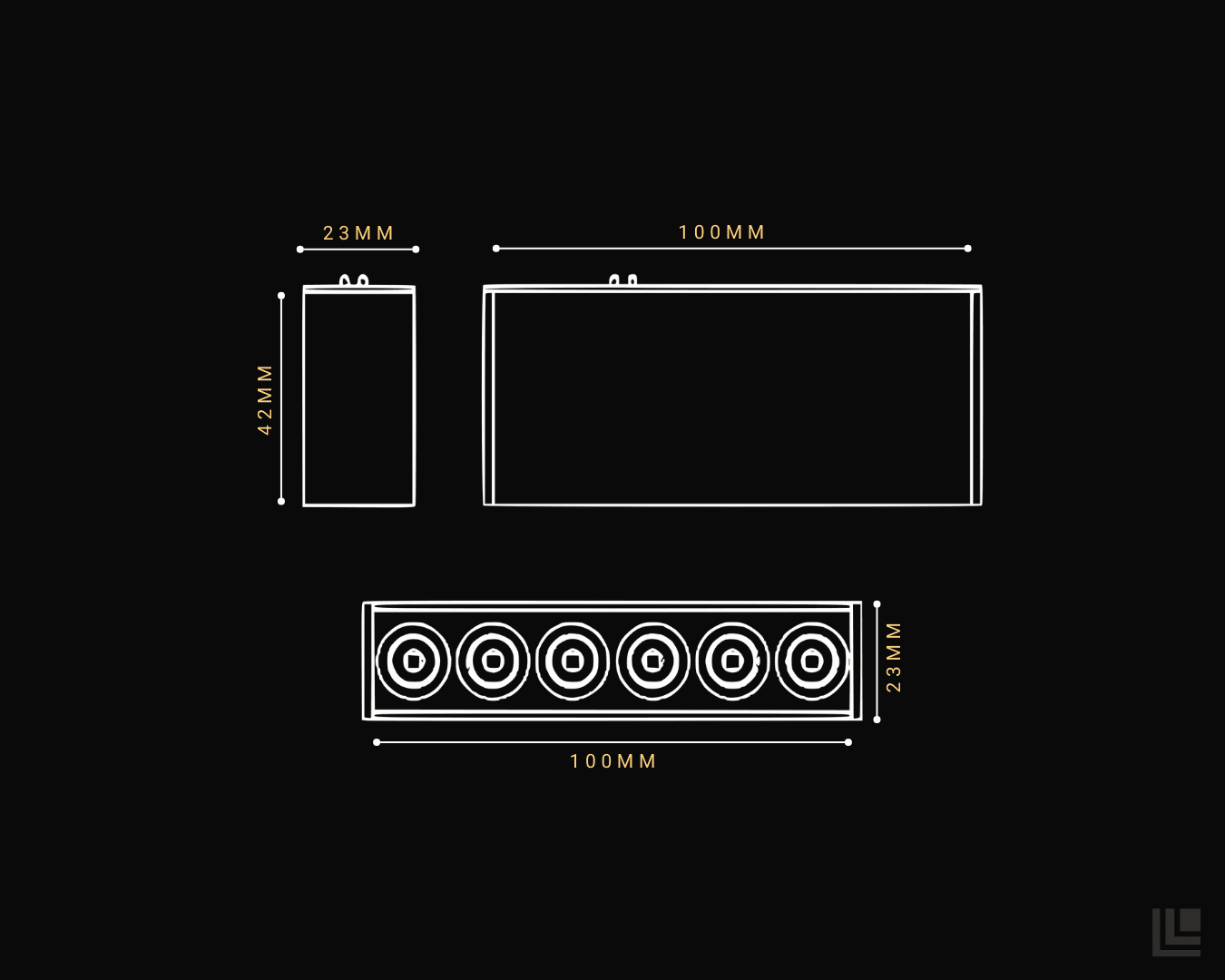

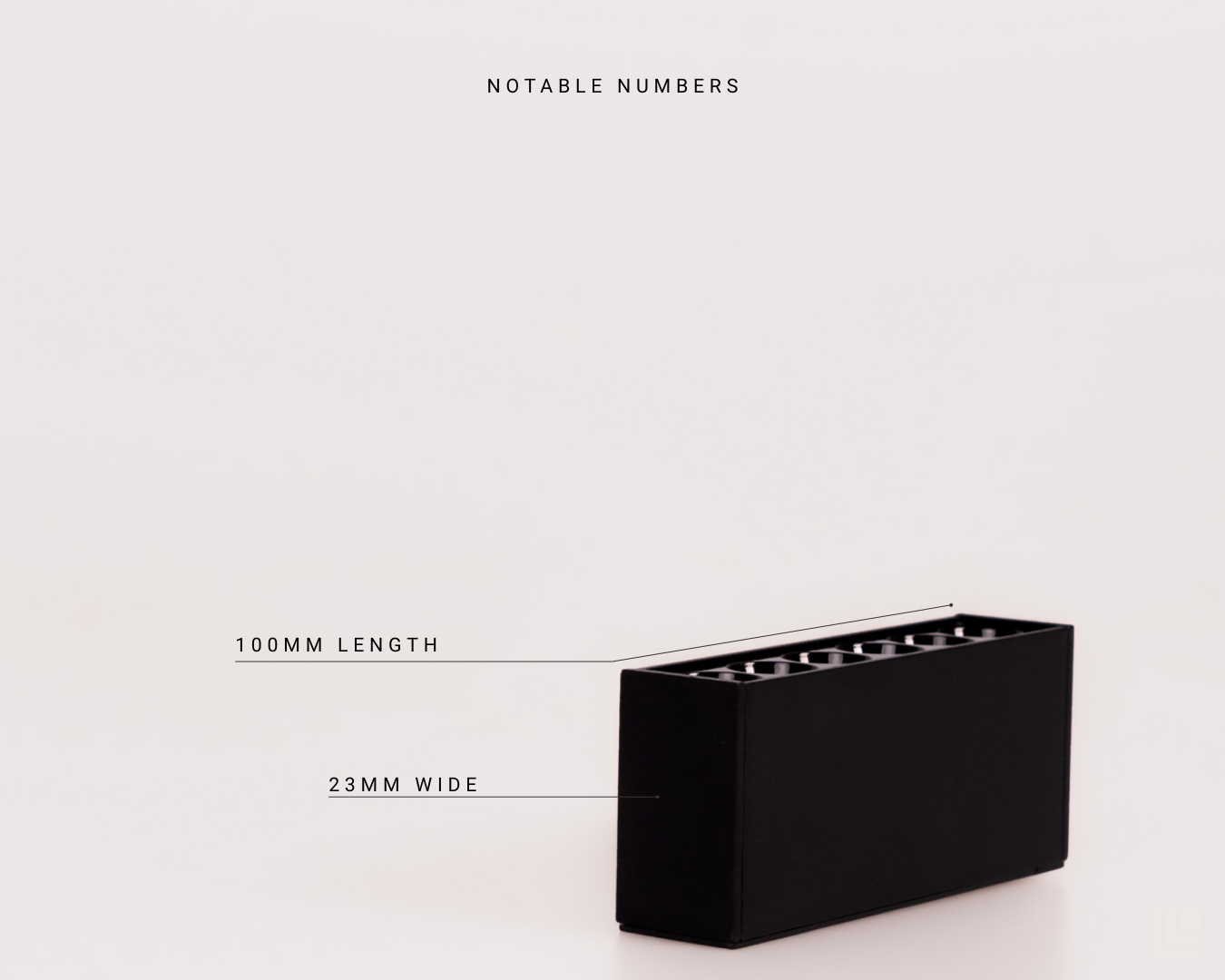

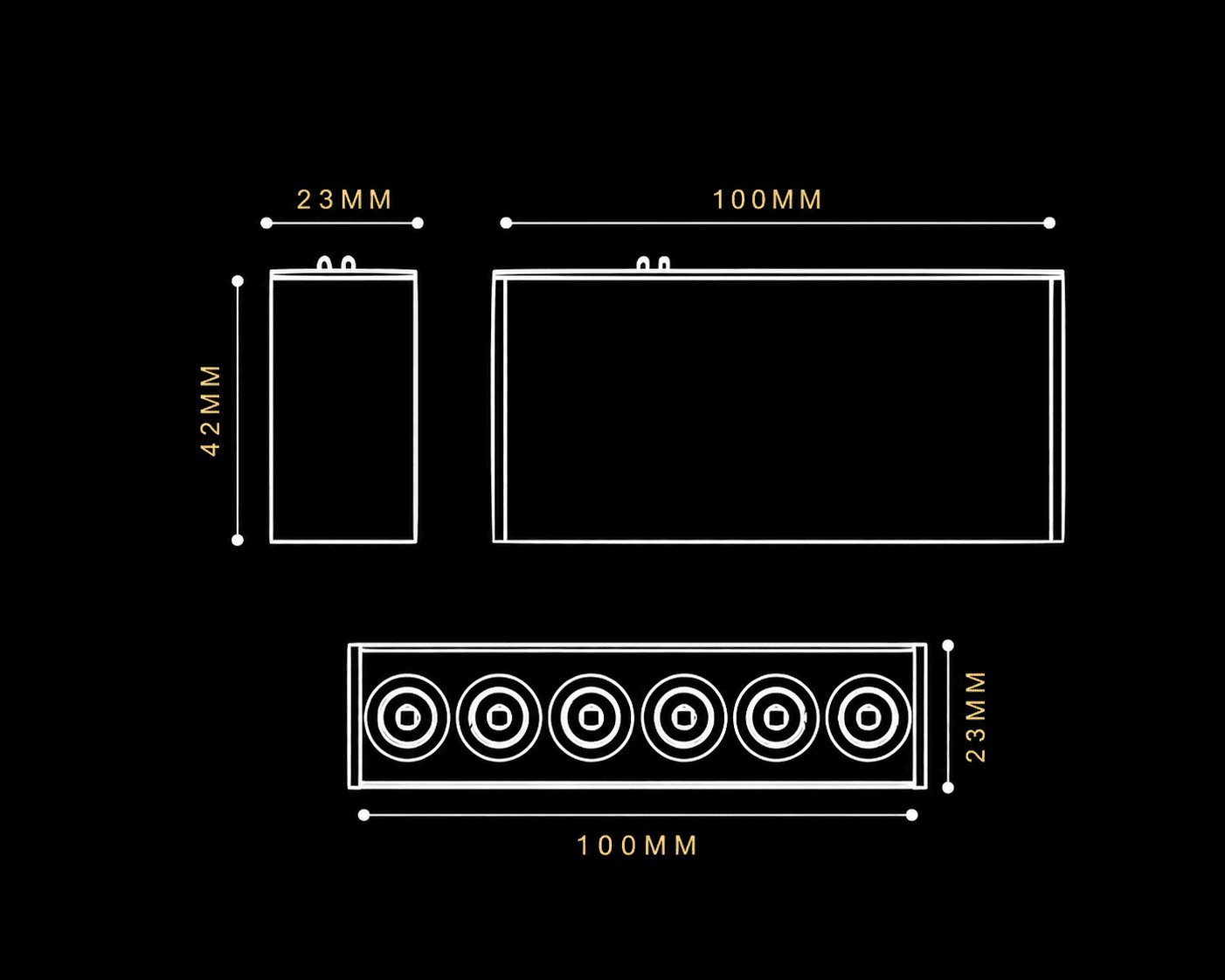

Size 42 x 100mm
Dimmable TRIAC Dimmable
Beam Angle 20°, 34°, 48°
IP Rating 20
Working Temperature -20°C – +40°C
Binning 1 SDCM
Finish Black Powder Coat
