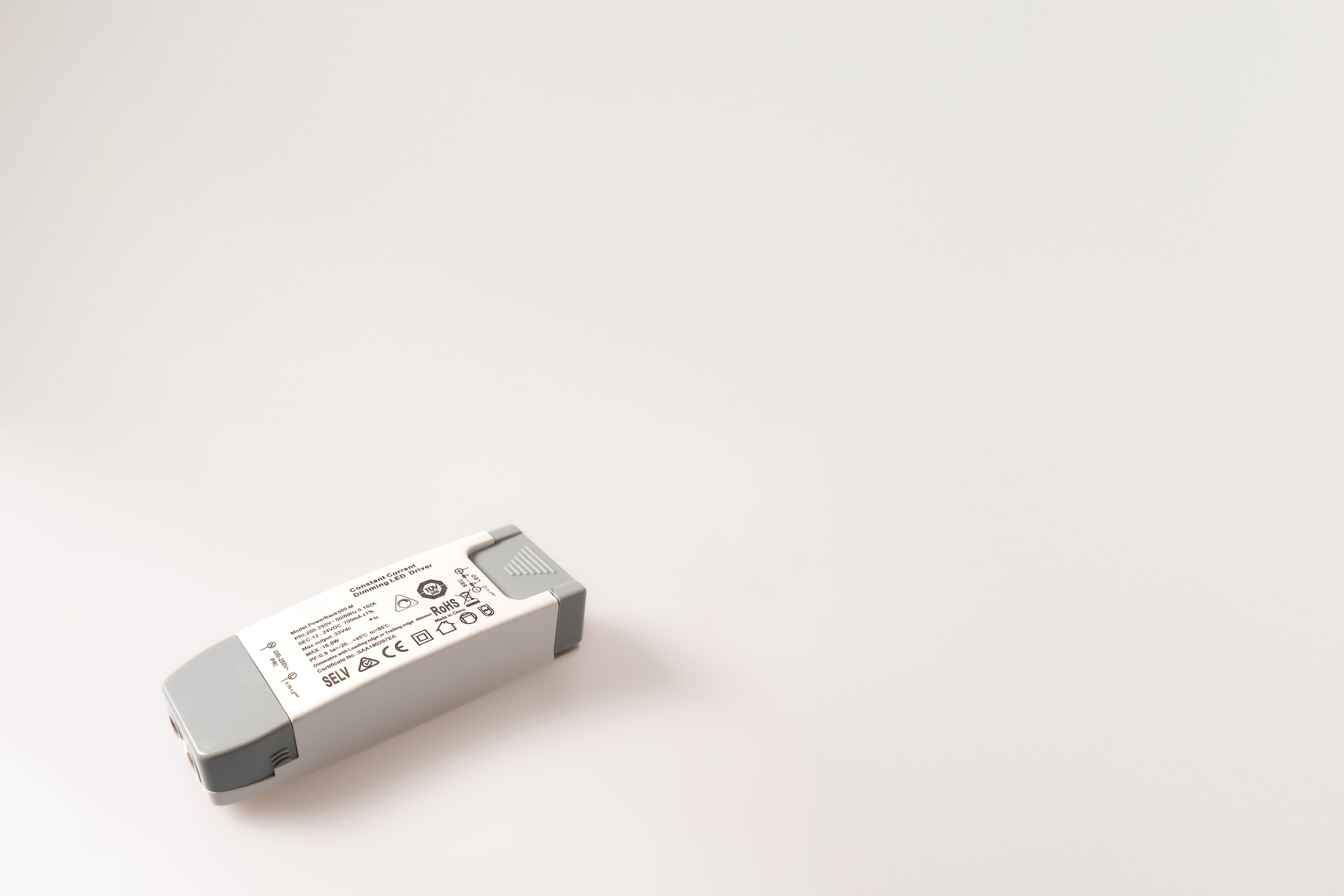

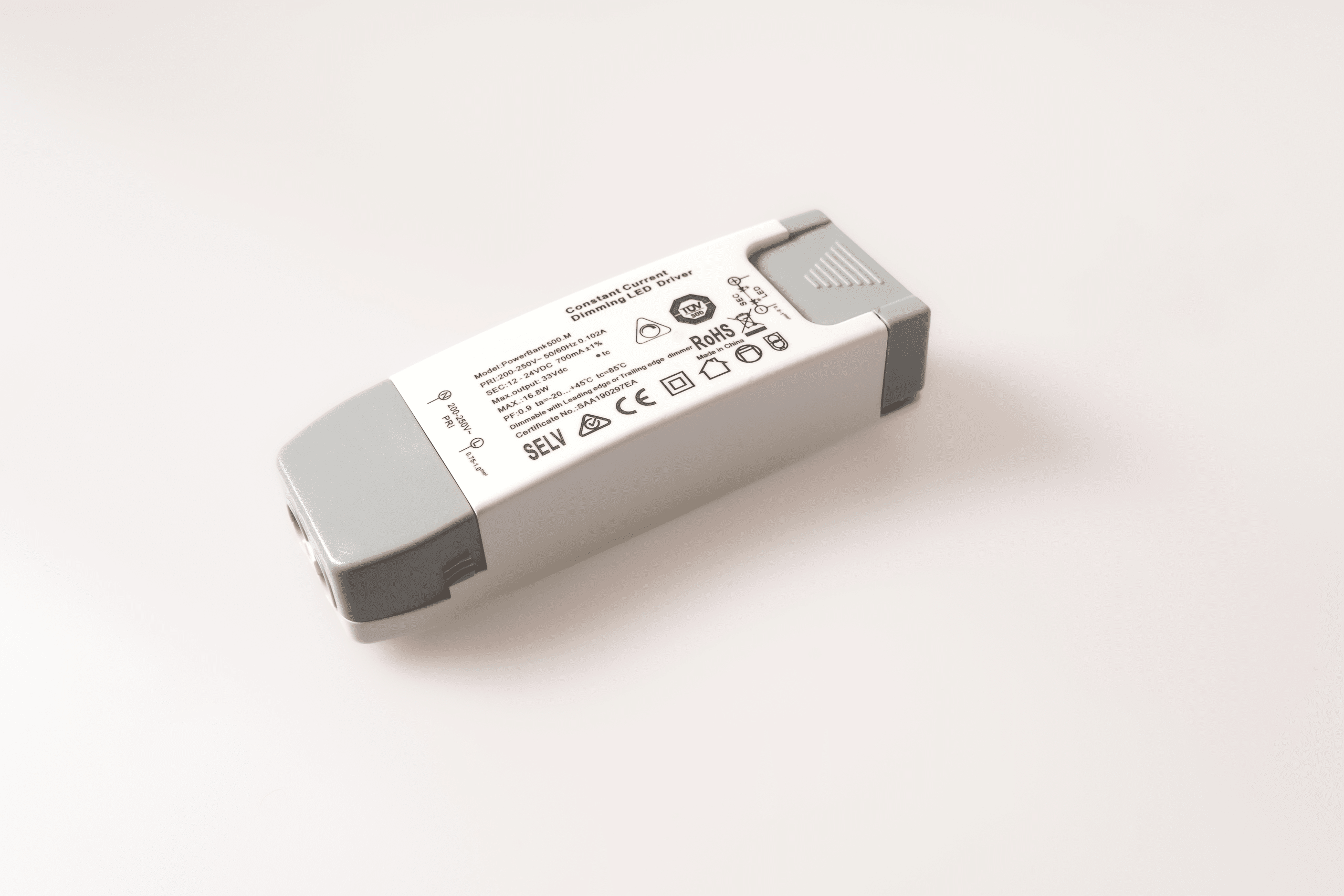

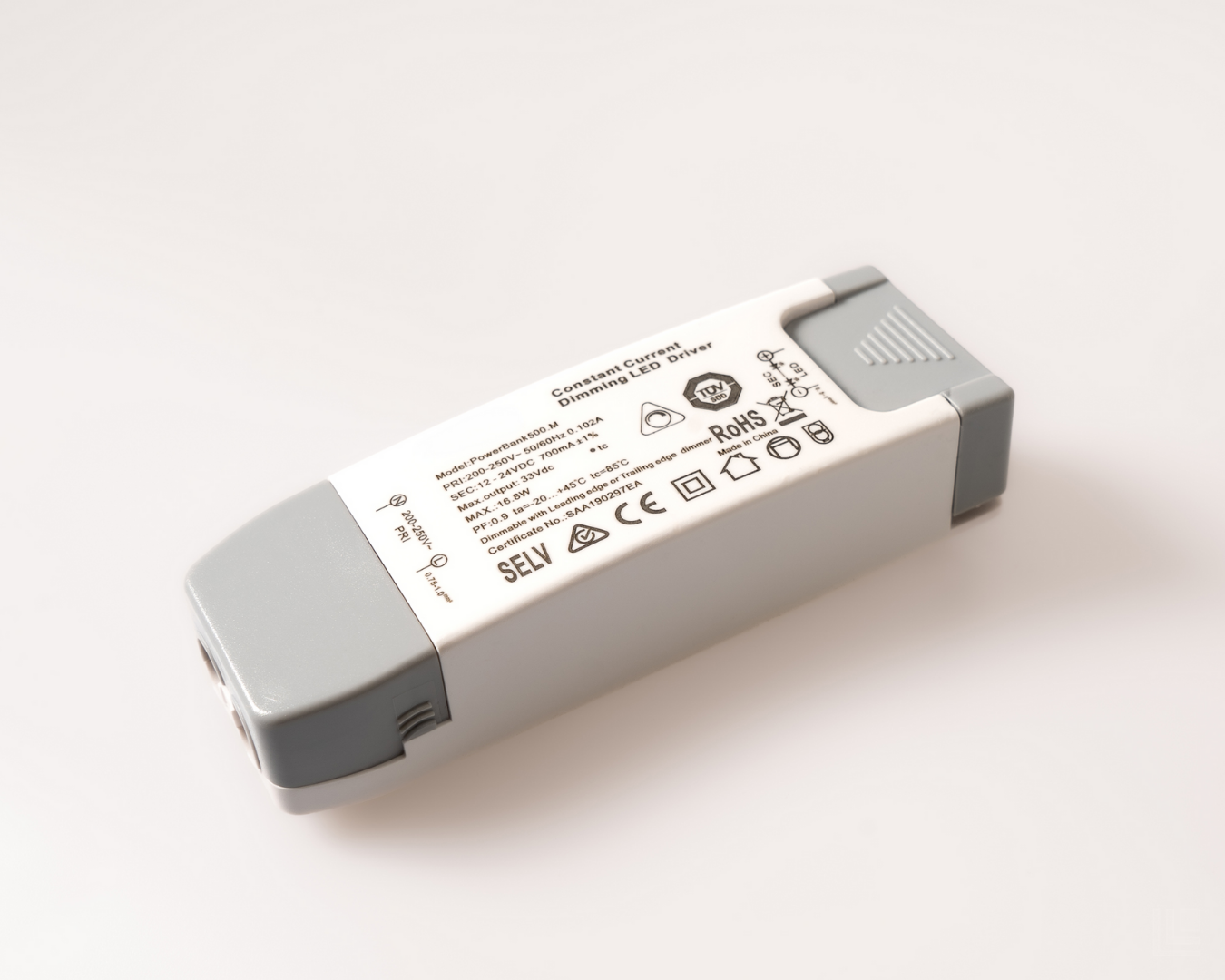

PowerBank500.M

£38.89

All of our drivers have been specifically designed for ease of installation and their technical performance.

Electrical terminals are heavy duty in construction for assured connections. All terminal covers are screw-less for speed and performance resulting in a 30% increase in installation time compared to a third party’s.

16-step dimming curves ensure unrivalled smooth dimming ability.

Unrivalled build quality and technical performance.

Product Data Sheet

SKU PowerBank500.M Categories ,

Warranty

Our 3-year warranty policy offers you and your client long-lasting satisfaction and peace of mind when choosing us for your lighting solutions.
Find out more

Dark Sky Policy

We're working towards the Dark Sky policy to ensure our exterior products are compliant with their guidelines to prevent light pollution and protect wildlife.
Find out more

Unrivalled Heat Sink

We’ve expertly engineered each product so not only does the heat sink increase the lifespan of the fitting, but it is also incorporated into the design of the product.

Revolution

We are taking steps to ensure our products have a more sustainable focus. We prefer to repair rather than replace and we hold stock in the UK to minimise carbon emissions.
Find out more

Exceptional CRI

Embrace colour accuracy with high CRI lighting, All of our light fittings have a CRI of at least 90, providing the most accurate and visually appealing light possible.

Lumen Output

It’s important to consider the desired brightness level for the intended application. Each product has a carefully considered lumen output to provide a suitable lighting finish.

Driver Calculator

Use our driver calculator to assist with specifying what driver(s) you will require for your next project. Simply input the number of fittings you would like to use on a single circuit, and the calculator will recommend the best driver for you.
Download

Availability: In stock (can be backordered)

PowerBank500.M Product Specification

Output Voltage 6 – 15Vdc Efficiency 85%
Output Current 500mA In-rush Current Cold Start 1.54A
Output Power 3w – 7.5w Anti-Surge L-N: 1.5kV
Strobe Level 8% Leakage Current <0.25mA/230Vac
Dimming Range 2-100% Working Temperature 45c – 85c
Dimming Interface Triac Leading Edge/ Trailing Edge IP IP20
Input Voltage Range 200-250Vac Over-Current Protection Shut Down >102% (auto recovers)
Frequency 50/60Hz Short-Circuit Protection Shut Down Short Circuit (auto recovers)
Input Current <0.06A Over-Heat Protection Shut Down >110c (auto recovers)
