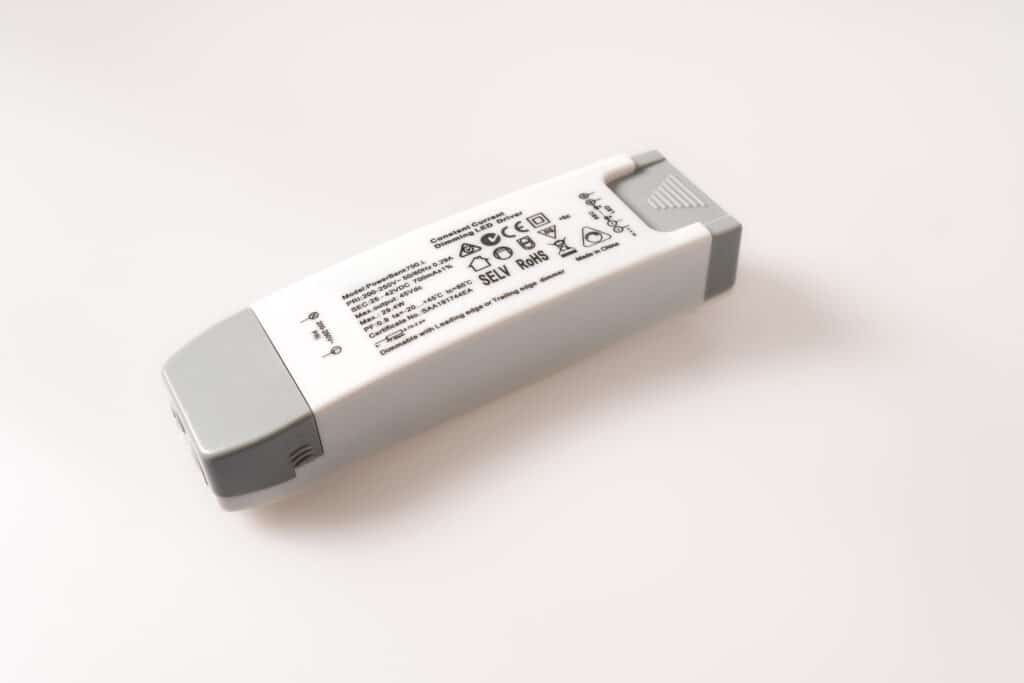

PowerBank700.L

Login for pricing

All of our drivers have been specifically designed for ease of installation and their technical performance.

Electrical terminals are heavy duty in construction for assured connections. All terminal covers are screw-less for speed and performance resulting in a 30% increase in installation time compared to a third party’s.

16-step dimming curves ensure unrivalled smooth dimming ability.

Unrivalled build quality and technical performance.

Product Data Sheet

SKU PowerBank700.L Categories ,

Warranty

Revolution

Dimmable

PowerBank700.L Product Specification

Output Voltage 25-42Vdc Efficiency 85%
Output Current 700mA In-rush Current Cold Start 3.0A
Output Power 17.5w – 29.2w Anti-Surge L-N: 1.5kV
Strobe Level 8% Leakage Current <0.25mA/230Vac
Dimming Range 2-100% Working Temperature 45c – 85c
Dimming Interface Triac Leading Edge/ Trailing Edge IP IP20
Input Voltage Range 200-250Vac Over-Current Protection Shut Down >102% (auto recovers)
Frequency 50/60Hz Short-Circuit Protection Shut Down Short Circuit (auto recovers)
Input Current <0.15A Over-Heat Protection Shut Down >110c (auto recovers)

Driver Calculator.

Use our driver calculator to assist with specifying what driver(s) you will require for your next project. Simply input the number of fittings you would like to use on a single circuit, and the calculator will recommend the best driver for you.
