All of our drivers have been specially designed for ease of installation and their technical performance.

Electrical terminals are heavy duty in construction for assured connections. All terminal covers are screw-less for speed and performance resulting in a 30% increase in installation time compared to a third party’s.

16 step dimming curves ensure unrivalled smooth dimming ability.

Unrivalled build quality and technical performance.

Product Data Sheet

Availability: In stock (can be backordered)

SKU: PowerBank700.XL Categories: ,
login for pricing

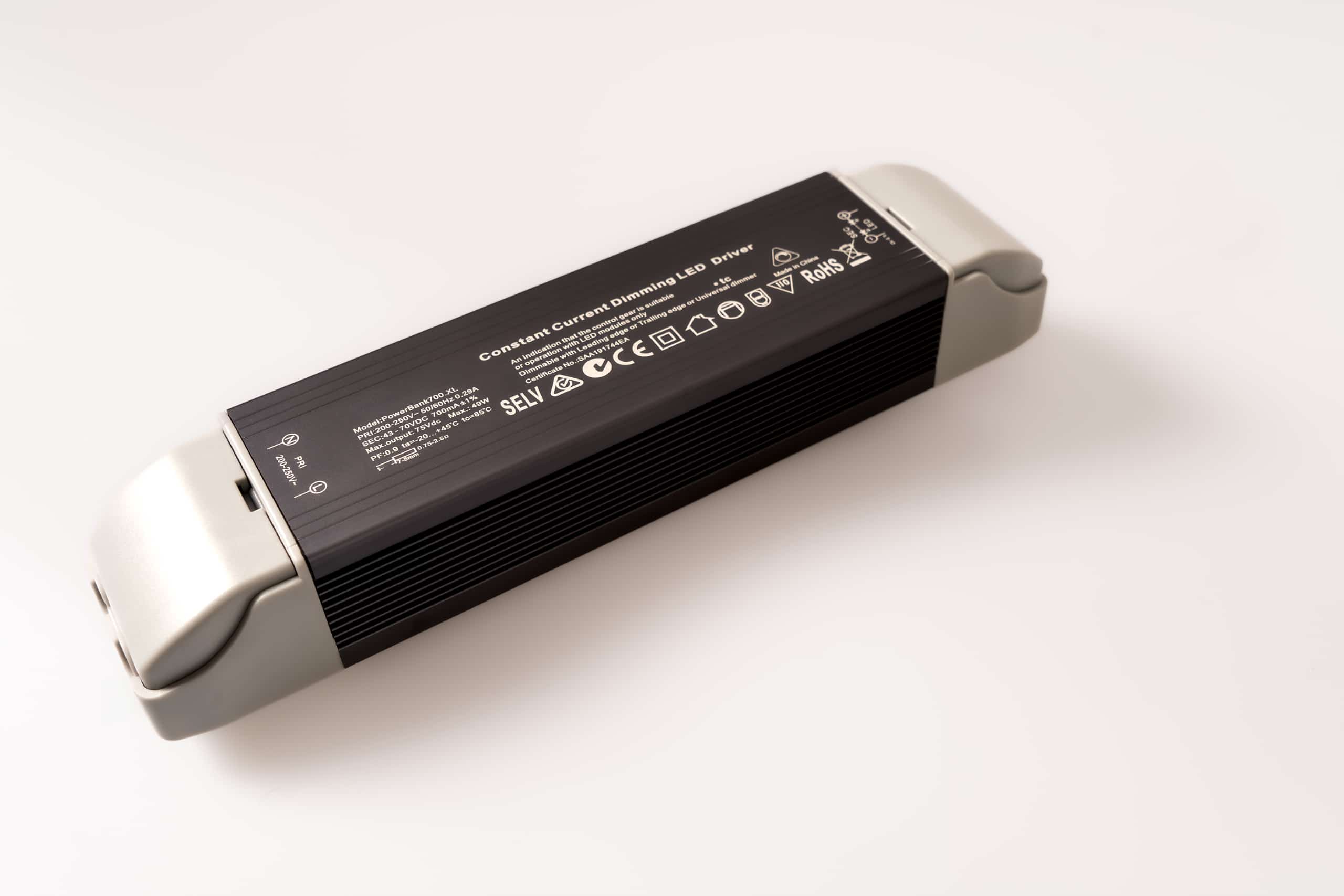

PowerBank700.XL Product Specification

Output Voltage 43 – 70Vdc Efficiency 85%
Output Current 700mA In-rush Current Cold Start 4.5A
Output Power 30w – 49w Anti-Surge L-N: 1.5kV
Strobe Level 8% Leakage Current <0.25mA/230Vac
Dimming Range 2-100% Working Temperature 45c – 85c
Dimming Interface Triac Leading Edge/ Traling Edge IP IP20
Input Voltage Range 200-250Vac Over-Current Protection Shut Down >102% (auto recovers)
Frequency 50/60Hz Short-Circuit Protection Shut Down Short Circuit (auto recovers)
Input Current <0.29A Over-Heat Protection Shut Down >110c (auto recovers)
